Chambon printing presses



To participate in the forum you must log in or register.
Author Previous Topic Topic Next Topic
Pillar Of The Community

Netherlands
656 Posts
Posted 02/14/2014   3:43 pm  Show Profile Bookmark this topic Add Galeoptix to your friends list Get a Link to this Message
Chambon was the manufacturer of all reel-fed printing presses used by the French State Printers at Boulevard Brun in Paris.

Presses for typography since the 1910-ies; presses for recess since the 1930-ies.

After World War II mainly known for their reel-fed photogravure presses and the peculiar perforation devices they had in-line.

- 1952 State Printers, Hakirya, Israel
- 1955 Pertjetakan Kebajoran, Indonesia
- 1960 Joh. Enschedé en Zonen, Haarlem, the Netherlands, at first predominantly used for printing aeorgrammes
- 1962 Note Printing Branch, Reserve Bank of Australia
- 196? De la Rue, UK
- 196? State Printers, Pretoria, South Africa, mainly used for printing aerogrammes
- 197? Harrison and Sons, UK

The (double) H-shaped comb perforation got well known by the New Zealand definitives printed by DLR. A.k.a. Chambon-perforation.

The same type of perforation - although not so well-known - can be found by a lot of Israeli stamps printed at Hakirya on their Chambon.
Send note to Staff

Pillar Of The Community
Canada
4415 Posts
Posted 02/14/2014   4:46 pm  Show Profile Bookmark this reply Add lithograving to your friends list  Get a Link to this Reply
Rein, thanks for that list of stamp printers employing
Chambon photogravure presses.

Is that list fairly complete?

Even though none of the stamps produced by those printers or
countries listed are part of my collecting interest,
except maybe Australia, I do have some photogravure stamps from
each entity.

When I compare, there is basically no comparison.

Harrison& Sons in my opinion was the premier printer
using photogravure, bar none.
Well maybe Courvousier was close.
Pity they closed down in 2001 after 70 years of stamp printing.

The Israeli printer also got excellent results from the examples
I've seen.

But the Australian Note Printing Branch never really got the best
results out of the Chambon press.

Just like the BEP with the Andreotti photogravure printed stamps which were terrible in my opinion.







Send note to Staff  Go to Top of Page
Pillar Of The Community
Netherlands
656 Posts
Posted 10/18/2018   02:30 am  Show Profile Bookmark this reply Add Galeoptix to your friends list  Get a Link to this Reply


So during 1965-1981 the Irish stamps printed in photogravure, by the Irish Government Printers of the Stamping Branch of the Revenue Department (Later known as Irish Security Printers), were done on a Chambon press!
Send note to Staff  Go to Top of Page
Valued Member
United Kingdom
282 Posts
Posted 10/19/2018   01:16 am  Show Profile Bookmark this reply Add 65170 to your friends list  Get a Link to this Reply
While not having much in the way of further details, my records show...

Indonesia. 1955 [May 12]. Pertjetakan Kebajoran. 3 colours.
(as listed, but with number of colours capability and precise date of introduction)

Iran. 1970. Mejliss, Teheran. (new to listing)

Israel. 1952. Hakirya, Tel Aviv. 2 colours. (as listed, with colour capability added)
Israel. 1958. Hakirya, Tel Aviv. 3 or 4 colours. (additional press)

Netherlands. 1961. Joh. Enschedé, Haarlem. Aerogrammes, later
stamps as well in 3 or 4 colours. (as listed, but with number of colours capability)

Great Britain. Harrison and Sons. An undated British stamp article snippet states: "We first became aware of the Chambon Press in 1979 when the 10p stamp was issued in sheets with a central gutter. Previously the machine had been used for fiscal stamps such as Post Office telephone savings stamps."

As for Ireland, the Stamping Branch had an association with Chambon presses going back to at least 1936 (but not photogravure presses at that time, nor were they used for printing postage stamps but postal orders and dog licences), so it is probably understandable that they would have chosen that press maker by the 1960s when requiring a photogravure press.
Send note to Staff  Go to Top of Page
Bedrock Of The Community
Learn More...
Australia
24245 Posts
Posted 10/19/2018   7:09 pm  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply


Not my image.
Send note to Staff  Go to Top of Page
Edited by rod222 - 10/19/2018 7:30 pm
Valued Member
United Kingdom
282 Posts
Posted 10/20/2018   03:20 am  Show Profile Bookmark this reply Add 65170 to your friends list  Get a Link to this Reply

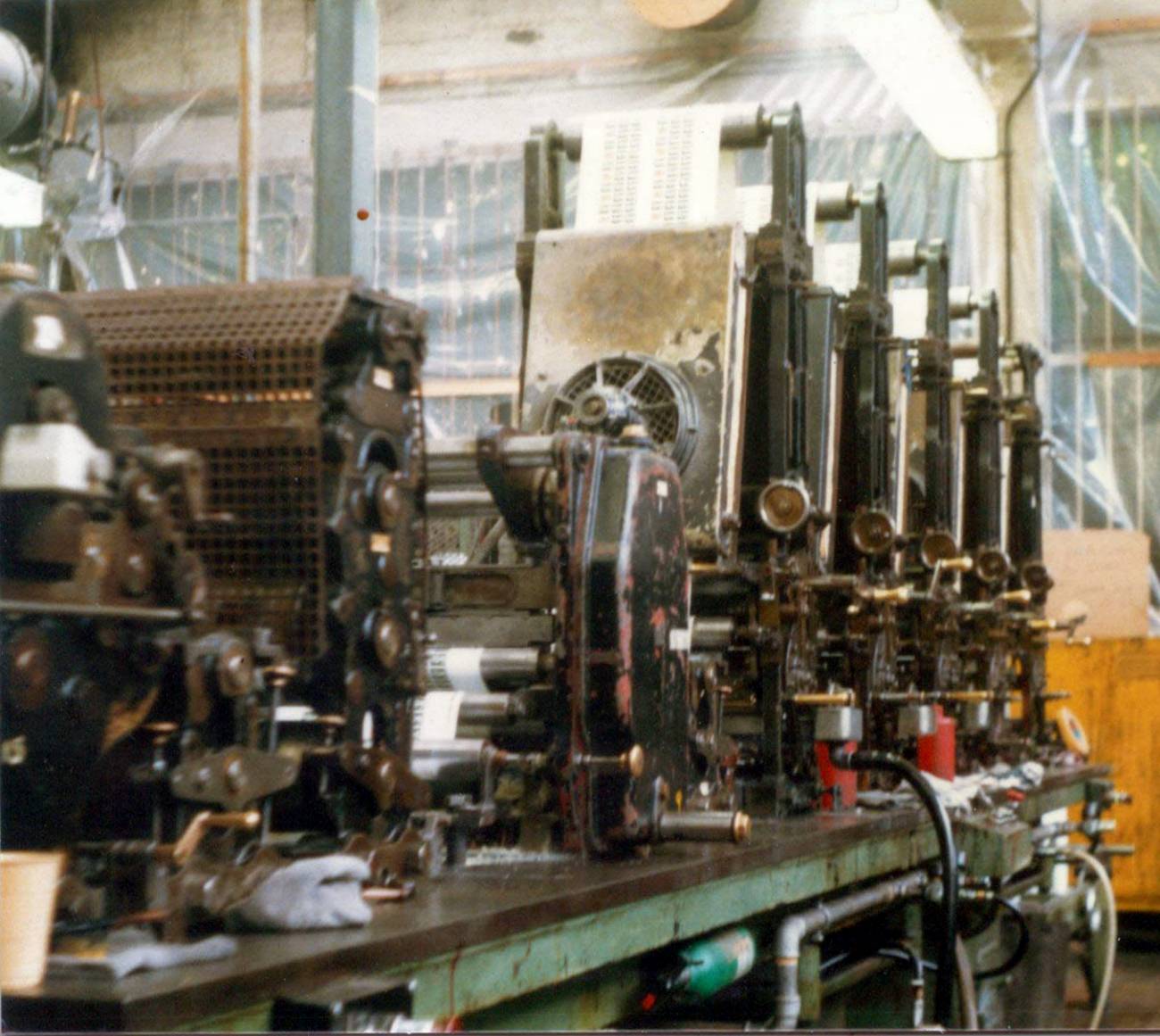

Harrison & Sons Chambon press photographed in 1987.

Send note to Staff  Go to Top of Page
Valued Member
United Kingdom
282 Posts
Posted 10/20/2018   03:32 am  Show Profile Bookmark this reply Add 65170 to your friends list  Get a Link to this Reply

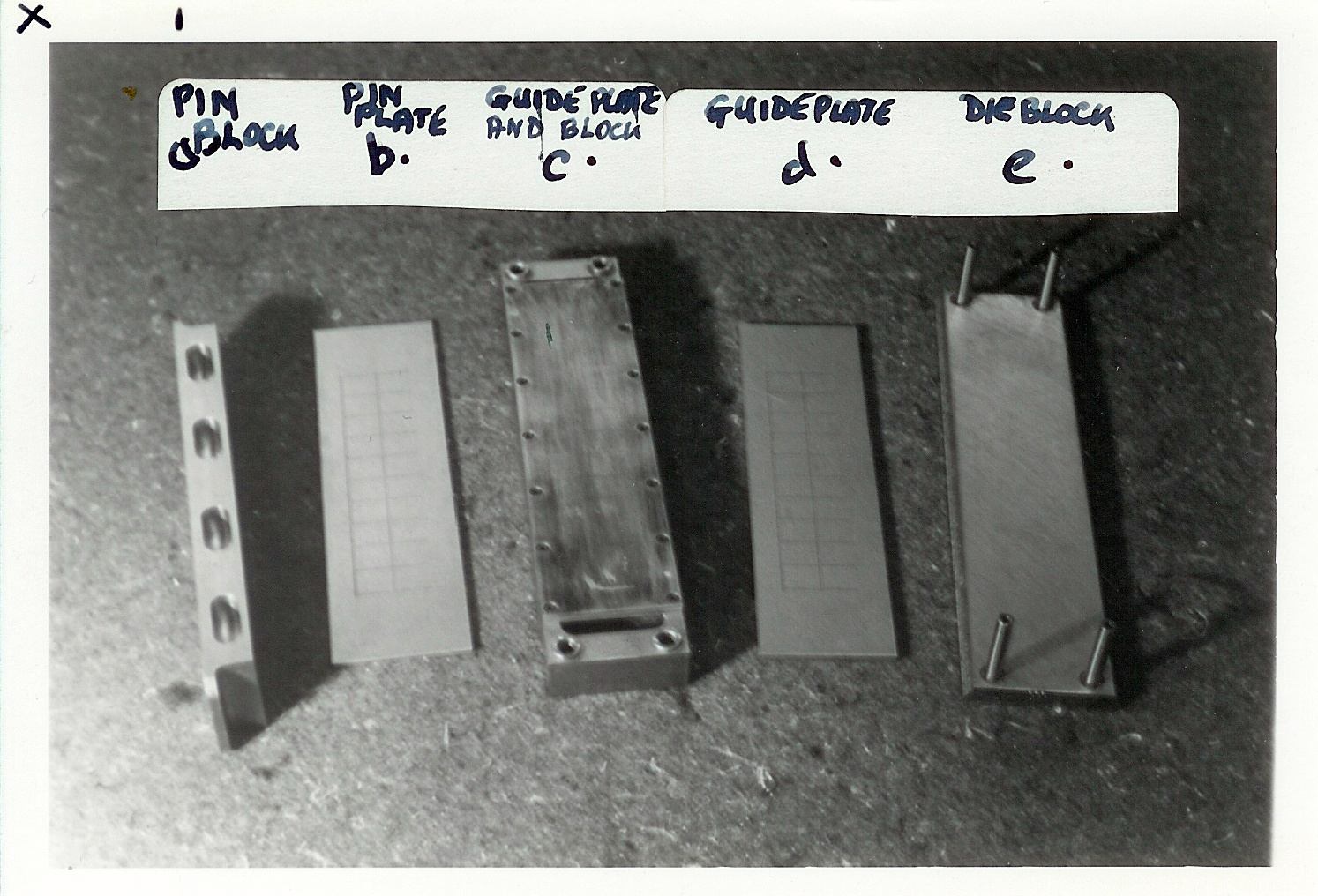

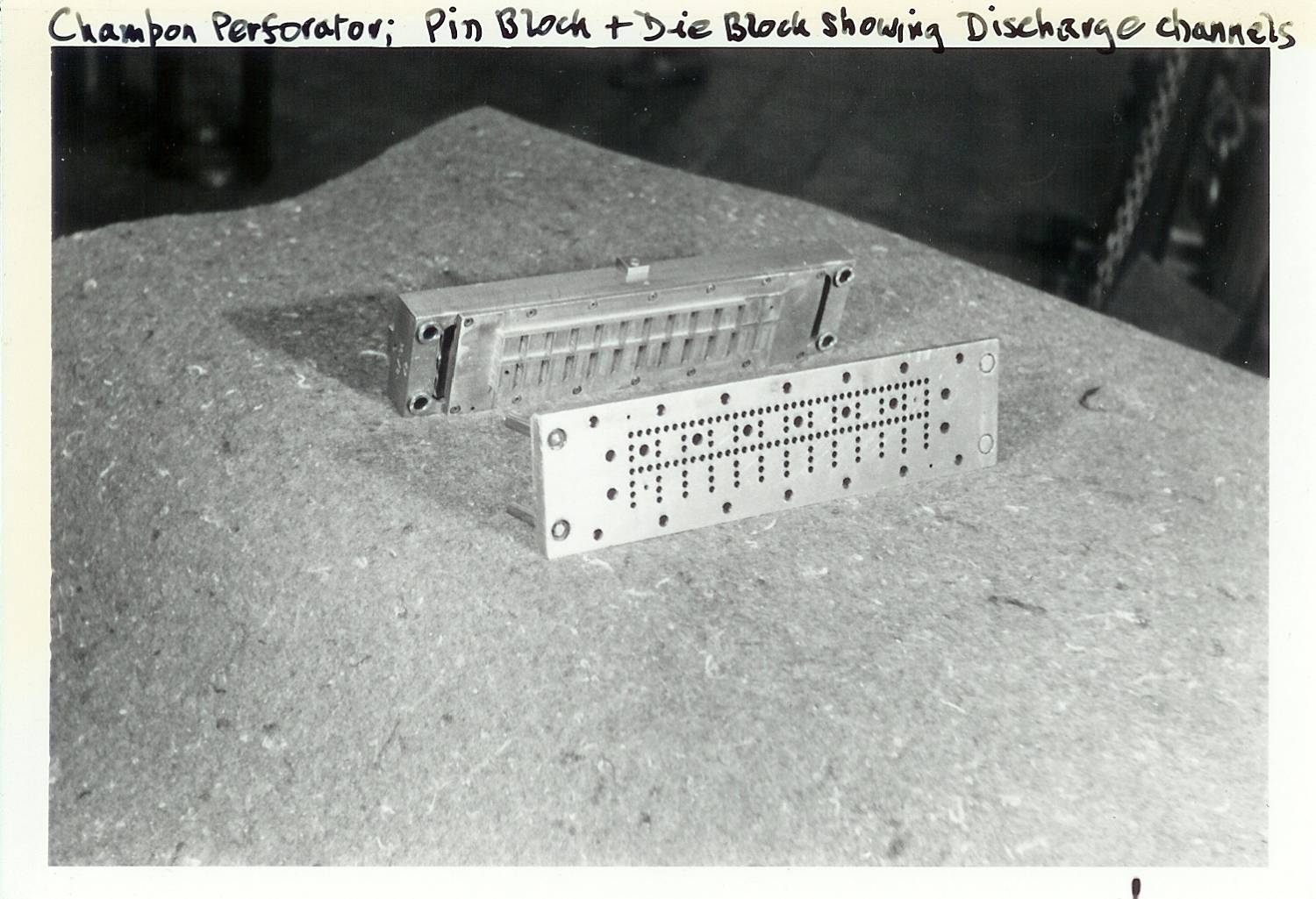

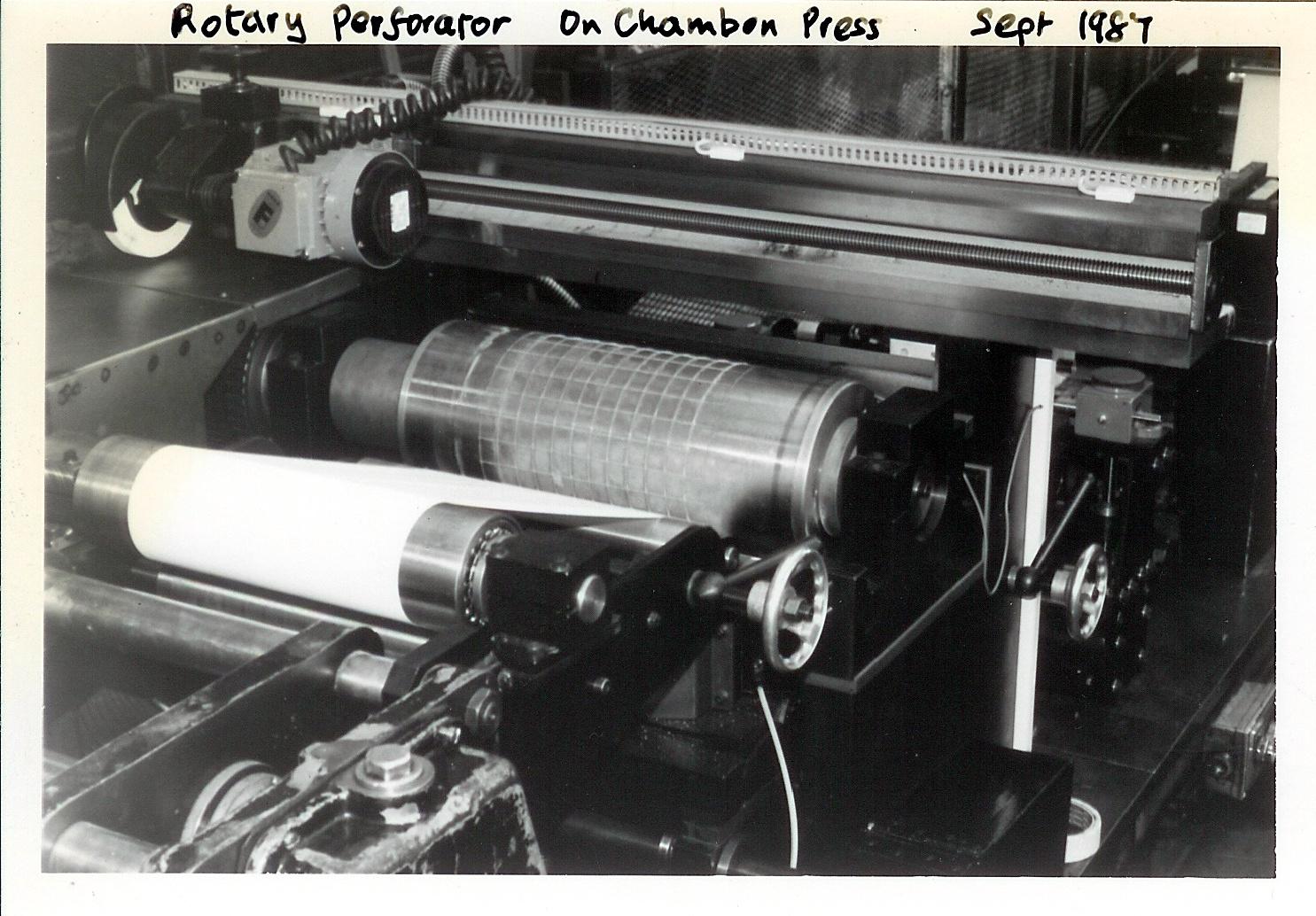

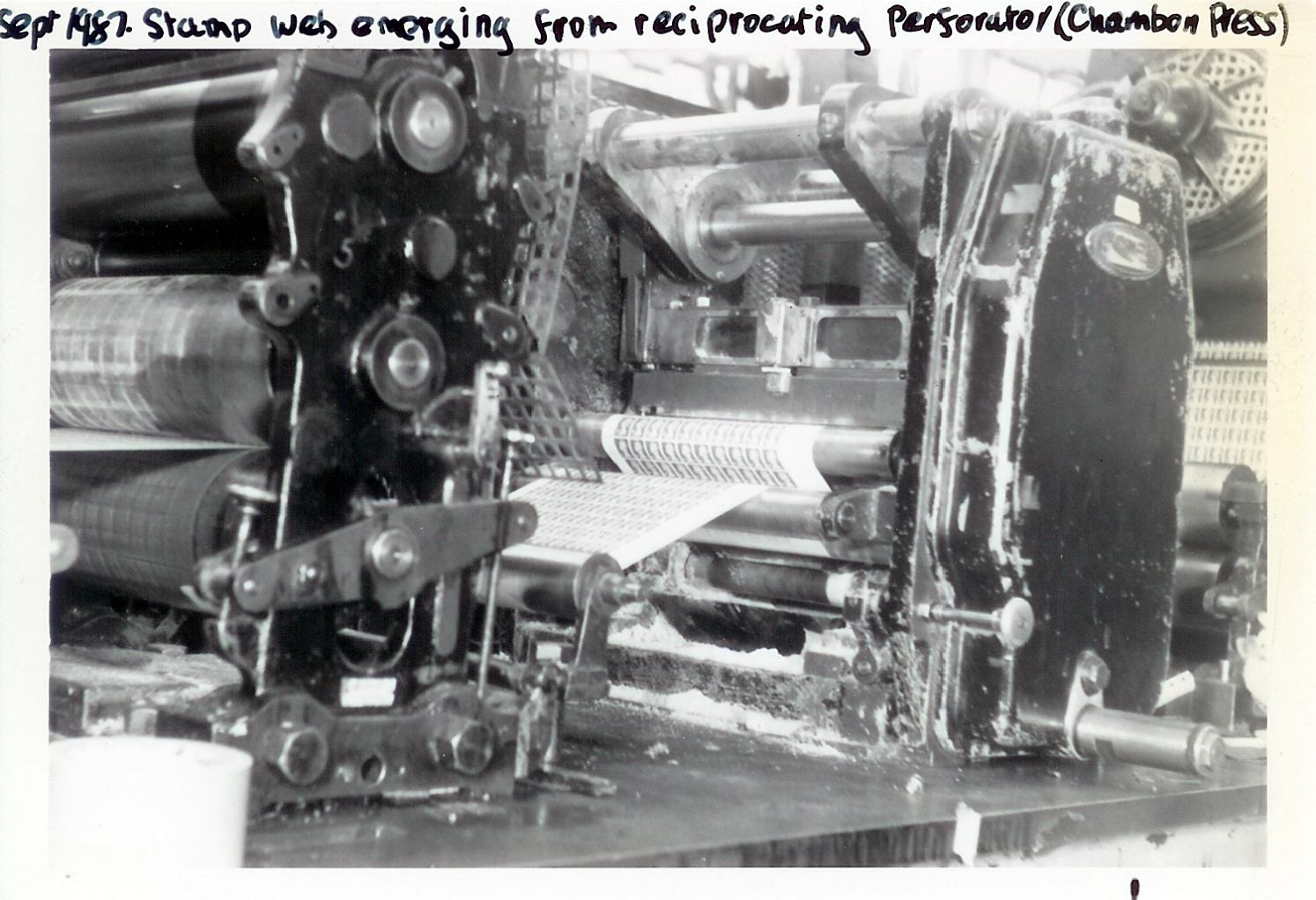

A series of images taken at Harrison in 1987. Captions at top of each image should generally be self-explanatory, although I have no idea what an "eccentric roller" (image 5) is!






Send note to Staff  Go to Top of Page
Edited by 65170 - 10/20/2018 03:34 am
Bedrock Of The Community
Learn More...
Australia
24245 Posts
Posted 10/20/2018   04:25 am  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply

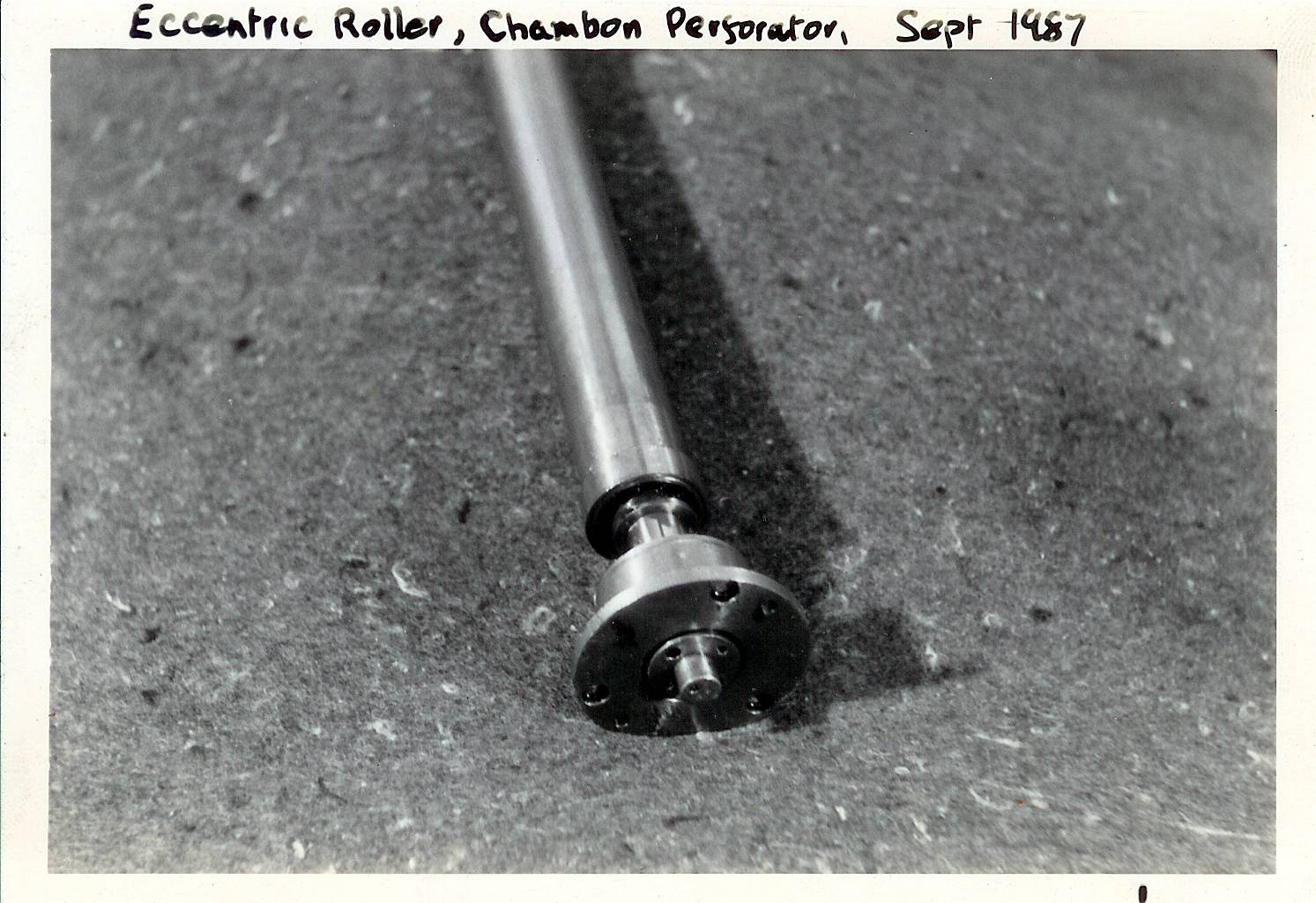

Guess:
Eccentric Roller.

The surface of the roller, is offset to some degree, from the centre of the axle,causing a "wobble" effect on rotation.
A camshaft in an internal combustion engine, would be an example.

Send note to Staff  Go to Top of Page
Edited by rod222 - 10/20/2018 05:32 am
Bedrock Of The Community
Learn More...
Australia
24245 Posts
Posted 10/20/2018   04:32 am  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply
Send note to Staff  Go to Top of Page
