Ceylon Sc# 3 Pair (Printing)

Next Page

To participate in the forum you must log in or register.
Author Previous TopicReplies: 23 / Views: 592Next Topic
Page: of 2
Valued Member
Canada
24 Posts
Posted 10/18/2021   4:54 pm  Show Profile Bookmark this topic Add Rodenbach99 to your friends list Get a Link to this Message

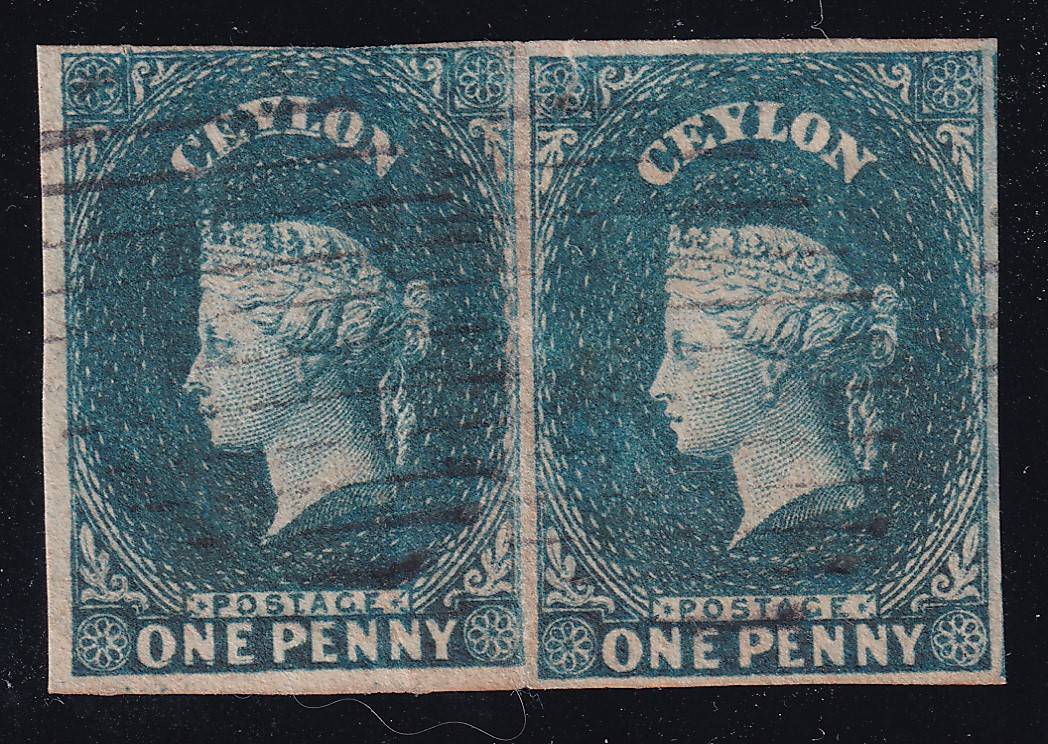

I would like to know the printing method or what hapenned to make the right stamp lower. Thank you.



***Title Typo Fixed***
Send note to Staff

Pillar Of The Community
United States
809 Posts
Posted 10/18/2021   5:07 pm  Show Profile Bookmark this reply Add mootermutt987 to your friends list  Get a Link to this Reply
The impressions on the plate are pressed into the plate individually, which results in images being all over the place relative to the images immediately adjacent. This was the technology of the 1850's. I suspect (but don't know) the process was done by hand. If not by hand then, apparently, the machinery used had lots of wiggle in it.

I collect early USA (1847, 1851 issues) and this is common. Extreme examples make this era interesting!
Send note to Staff  Go to Top of Page
Pillar Of The Community
United States
7724 Posts
Posted 10/18/2021   7:21 pm  Show Profile Bookmark this reply Add Petert4522 to your friends list  Get a Link to this Reply
It also seems that the spacing between the two is much smaller than the area on the left. Could they be stamps from the left and right pane of a larger sheet? If they were coils they could be where the plates meet


Peter
Send note to Staff  Go to Top of Page
Bedrock Of The Community
Learn More...
Australia
33615 Posts
Posted 10/18/2021   7:25 pm  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply
Siderography should answer your question.

the art of engraving steel especially : a process of multiplying facsimiles of an engraved steel plate by rolling over it when hardened, a soft steel cylinder. And then rolling the cylinder when hardened over a soft steel plate.

And then rolling the cylinder when hardened over a soft steel plate.
This is where the siderographer miss judged the position, of one of the roll ins.

Send note to Staff  Go to Top of Page
Pillar Of The Community
Learn More...
7136 Posts
Posted 10/18/2021   7:44 pm  Show Profile Bookmark this reply Add rogdcam to your friends list  Get a Link to this Reply

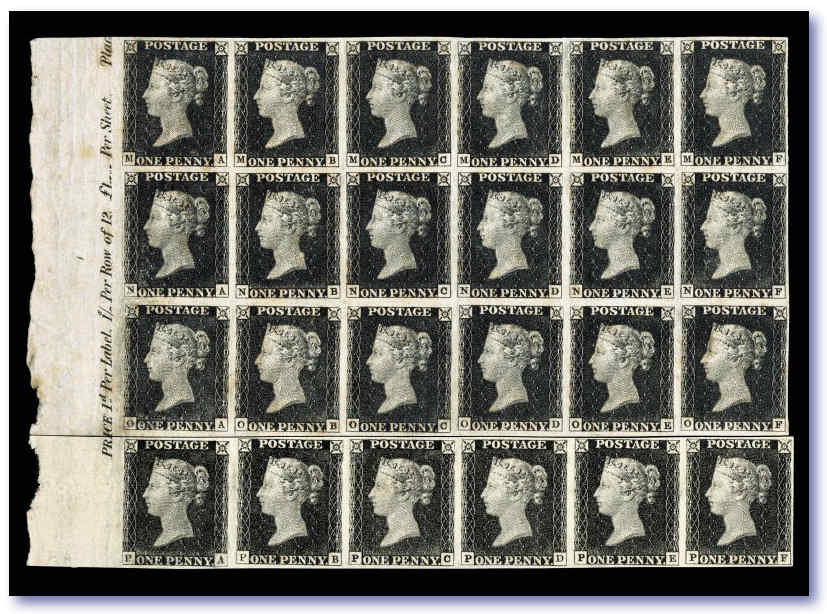

You can see it in this multiple of the Penny Black:
Send note to Staff  Go to Top of Page
Valued Member
Canada
24 Posts
Posted 10/18/2021   8:08 pm  Show Profile Bookmark this reply Add Rodenbach99 to your friends list  Get a Link to this Reply
Thank you, I will read about Siderography.
Send note to Staff  Go to Top of Page
Bedrock Of The Community
Learn More...
Australia
33615 Posts
Posted 10/18/2021   9:15 pm  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply
Roden,
if you work from Scott, I think they have info front of catalogue,
in the preamble, including an image of the roller die.

"Classic coins" explains similar problems with Hawaii here.......
http://goscf.com/t/78773#711316 br /


Quote:
The siderographer had significant problems placing the transfer roll at the correct position on the plate for each entry. Specialists of the issue believe the problems resulted from the plate being too thick, reducing the spacing between the transfer roll and the plate, thereby reducing the siderographer's visibility of the layout lines or position dots.

The siderographer frequently had to reposition the transfer roll after starting an entry at a given position then realizing the entry was out of alignment. At some positions, four, or even five, total entries were made.
Send note to Staff  Go to Top of Page
Edited by rod222 - 10/18/2021 9:19 pm
Bedrock Of The Community
Learn More...
Australia
33615 Posts
Posted 10/18/2021   9:26 pm  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply
Roden,
a film is worth a thousand images

SIDEROGRAPHER shown here at 1 minute.........
Perfect illustration albeit, with banknotes, instead of stamp images.

Slwn2nDZNtE
Send note to Staff  Go to Top of Page
Edited by rod222 - 10/18/2021 9:30 pm
Pillar Of The Community
United States
2573 Posts
Posted 10/19/2021   02:21 am  Show Profile Bookmark this reply Add hy-brasil to your friends list  Get a Link to this Reply
Siderographers would often make small scratches called layout lines to help them lay out the designs square and evenly spaced. Clearly, that's not been done here for whatever reason.

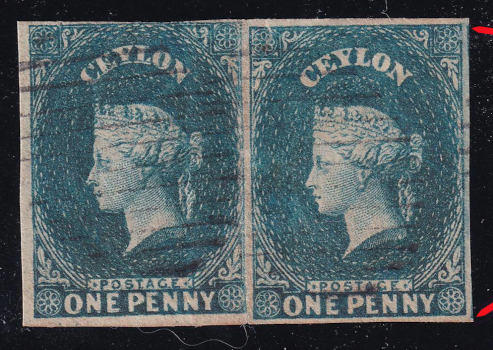

The staggered layout continues as shown by the red arrows:

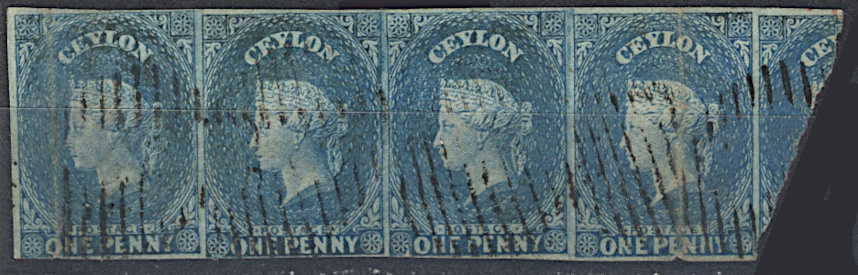

shown even better here on this nice strip found online:

EDIT: These are different sheet/pane positions from the above pair.
Send note to Staff  Go to Top of Page
Edited by hy-brasil - 10/19/2021 04:49 am
Pillar Of The Community
Canada
1199 Posts
Posted 10/19/2021   07:05 am  Show Profile Bookmark this reply Add Just_fella to your friends list  Get a Link to this Reply
Sorry to jump in,
I can't rely on somebody to ask my silly questions,
-what plate are the penny blacks? ( seems that the A's shift, would be confusing without it in sheet to plate?)
-what are the measurements of the one penny blue? (seems it might be about quarter mm bigger?) seems like this may happen in corner stamps, I'd guess micro impressions cause by the paper being pulled into the die
But just a guess,
Probably just more nonsense but figured Throw it out
Send note to Staff  Go to Top of Page
Edited by Just_fella - 10/19/2021 08:26 am
Pillar Of The Community
1125 Posts
Posted 10/19/2021   08:59 am  Show Profile Bookmark this reply Add NSK to your friends list  Get a Link to this Reply
Not such a silly question. Both the top block and bottom row appear to have been printed from plate 1, after hardening: i.e., 1B.
Good to check that the two parts indeed came from the same plate at least. Now, they should also come from the exact same sheet (not so convinced they do, but difficult to be sure).

The letters do not shift. They were inserted by hand. The different shapes and positions were studied by Charles Nissen and he identified the individual stamps from the eleven plates. Plate 1 exists in two states, known as 1A and 1B. This study helps stamp collectors to plate their examples of the Penny Black.

Similar studies have been conducted for the many Penny Reds.

Pulled into the press? When do you think these were printed?
Send note to Staff  Go to Top of Page
Edited by NSK - 10/19/2021 09:12 am
Pillar Of The Community
Canada
1199 Posts
Posted 10/19/2021   09:03 am  Show Profile Bookmark this reply Add Just_fella to your friends list  Get a Link to this Reply
I should have said as the press came down maybe? It's like a vibration, pulling the image ( perhaps the deepest point in the die off in size)
And I should have said edges not just corners
But the paper has to flex somewhere,no?
Send note to Staff  Go to Top of Page
Edited by Just_fella - 10/19/2021 09:07 am
Pillar Of The Community
Canada
1199 Posts
Posted 10/19/2021   09:17 am  Show Profile Bookmark this reply Add Just_fella to your friends list  Get a Link to this Reply
It like an impression initial contact, set in to the die, then release all left an image
If that makes any sense
Making it a dragged out image?
Send note to Staff  Go to Top of Page
Edited by Just_fella - 10/19/2021 09:18 am
Pillar Of The Community
1125 Posts
Posted 10/19/2021   09:17 am  Show Profile Bookmark this reply Add NSK to your friends list  Get a Link to this Reply
Search for paper shrinkage. That could cause some variation in size, but between sheets or even printings.

If the press came down (as it did not) why should there have been any difference at an edge? What edge? Who says these stamps were not from the centre of the top right quarter or the top right of the bottom left quarter of the sheet?
Send note to Staff  Go to Top of Page
Edited by NSK - 10/19/2021 09:18 am
Pillar Of The Community
Canada
1199 Posts
Posted 10/19/2021   09:21 am  Show Profile Bookmark this reply Add Just_fella to your friends list  Get a Link to this Reply
Shrinkage of the paper, fair enough
Shouldn't the image shrink as well?
It looks like it pulls like this
Again I'm just learning, sorry if it's killing air
Send note to Staff  Go to Top of Page
Edited by Just_fella - 10/19/2021 09:30 am
Pillar Of The Community
1125 Posts
Posted 10/19/2021   09:29 am  Show Profile Bookmark this reply Add NSK to your friends list  Get a Link to this Reply
As I said. Unlikely to occur within a sheet.

But what is your point with the size? Where do you see a size difference? The stamps are at an angle and the clichés appear to have been displaced. They are not lined up perfectly making a size difference easily observable.
Send note to Staff  Go to Top of Page
