Hoe Printing Presses

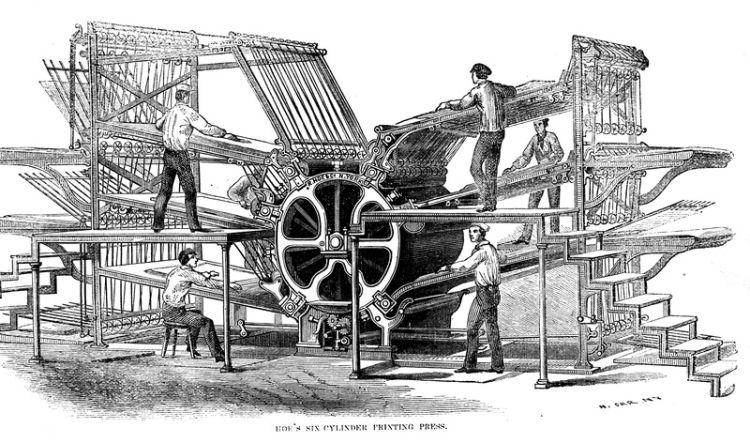

Old 6 cylinder stamp printing press.

Wow, 6 cylinders, 5 pressmen, big as house, some Hoe press.

This Hoe was much smaller at only 41x28 inches

Now that we're splitting print-related subjects for easy searching, perhaps these last two great images could be refiled under a new thread called Hoe Printing Presses before we start getting lots of non-video posts (i.e. photographs) here? Just a thought.

GLENN

Thanks Kirk, you work fast.

Hope the pay is good.

The four stations in one Hoe press was used by the BEP to print U.S. flat plate stamps. Here's a link with more information:

http://arago.si.edu/index.asp?con=2...&img=1&pg=11

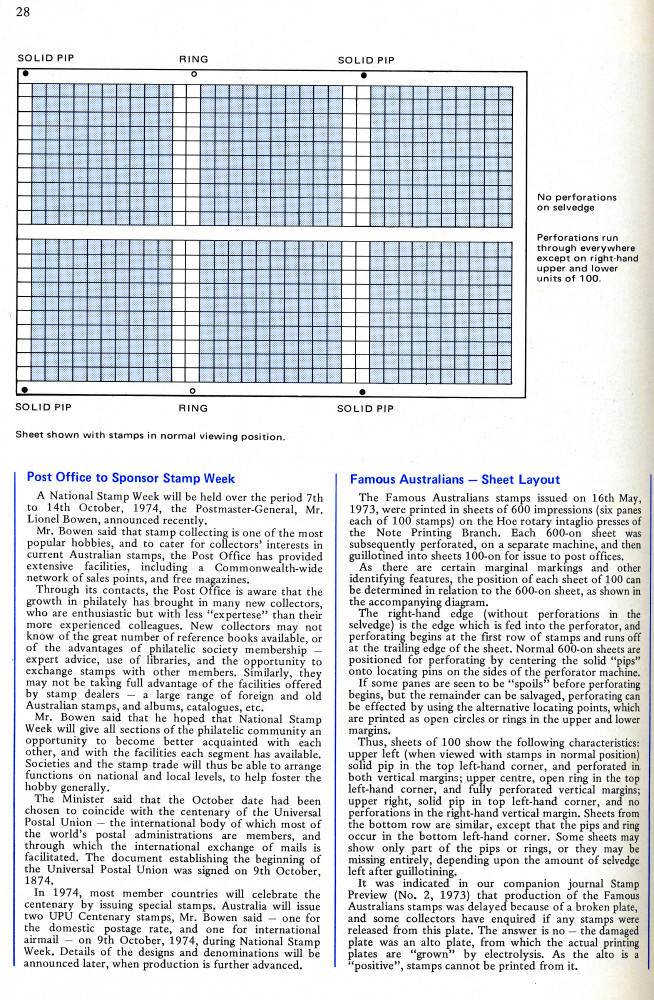

Here is an article from the Australian Stamp Bulletin December 1973.
It has some excellent information concerning the printing of the 1973 Famous Australians
stamp issue by the Note Printing Branch using Hoe rotary intaglio presses.

Lithograving,

the word ROTARY may be misleading! It just indicates the use of cylinders (or curved plates) that rotate! Another aspect is whether the press was sheet-fed or reel-fed! Rotary opposed to flat-bed!

Practically ALL photogravure presses use cylinders but not all were reel-fed...

groetjes, Rein

Well Rein I only quoted the article where it states
Hoe rotary intaglio presses.
But you're right all this rotary stuff might be confusing.


And here a Utube video showing a Heidelberg XL-105 6 color
sheetfed press which prints 18,000 sheets per hour.
It is not printing stamps in this video but offset
Heidelberg presses like this are being used for
instance by the Canadian printers Lowe Martin and
Canadian Bank Note Co also has a 6 colour Heidelberg.

I still find it hard to comprehend, how drawing on a stone with a wax crayon, can produce such brilliant work.
It somehow defies understanding.

"The designs were so intricate that Prang sometimes had to used up to 40 stones for one design. "

"and saw" ? = guillotine?

https://www.pinterest.com.au/pin/48...28665848784/
http://havingalookathistoryofgraphi...aphy-to.html

Thanks to Glenn and Kirk, I was able to find this thread.

This may or may not be of interest to those with a printing bent,
It is beyond my understanding, however the "Hoe" printer stood out,
so I post some info here.

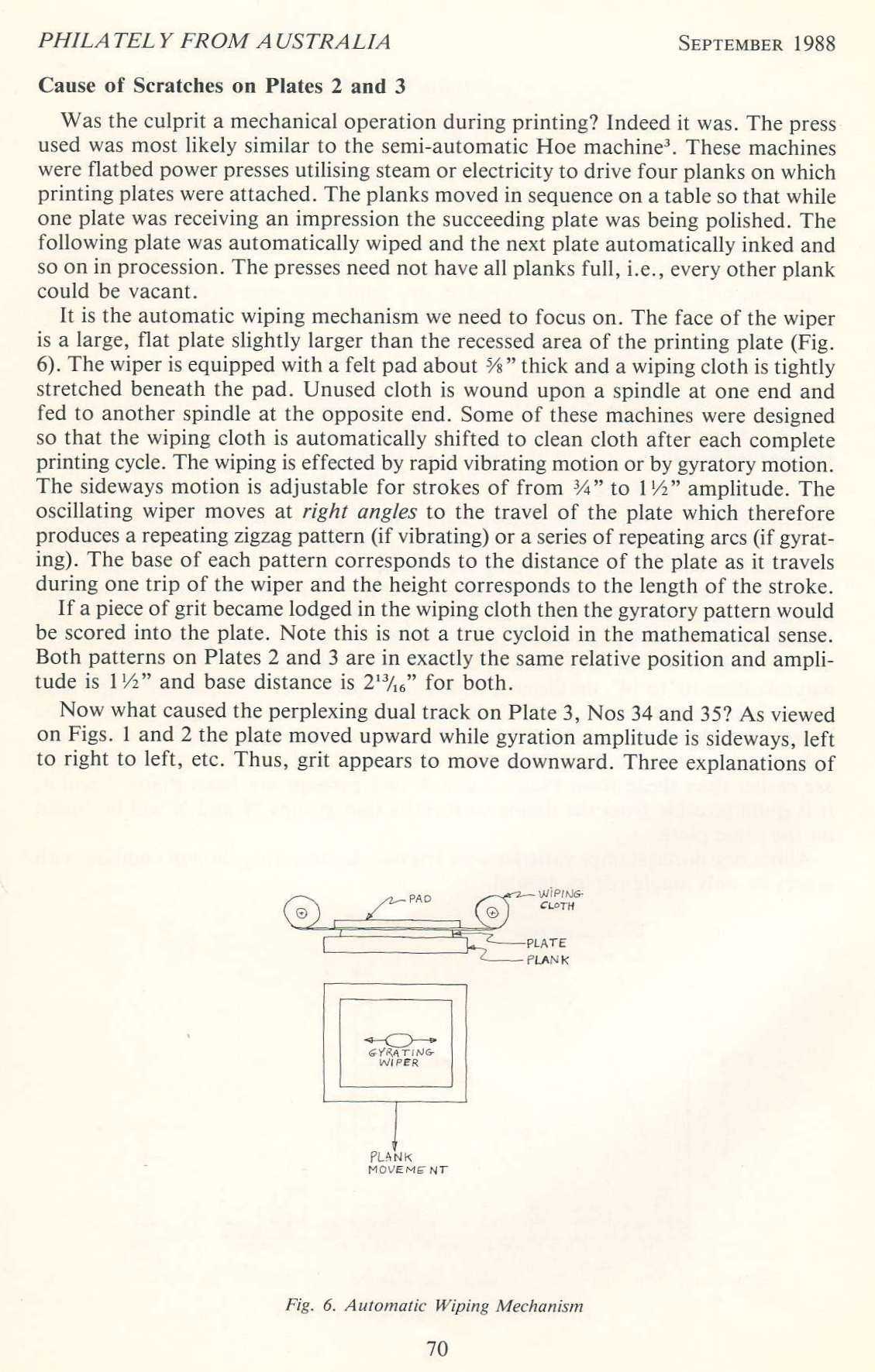

The cynosure was the discussion on scratches on the Tasmanian Pictorial 1d Recess plates.

I am not aware the "Hoe" has any relation to the US model.

The Hoe (flat) press was based on the Milligan (flat) press.

See:

https://patents.google.com/patent/US180490A

https://patents.google.com/patent/US193097A

Thank you very much, Jogil.

For anyone interested in the early printing processes, prior to the postage stamp, this paper makes fascinating reading.

(I had no idea where to place this post, this looks like oldest time frame)

Amongst other things, it addresses papermaking machines, new fibres, non rag fibres, colorants etc.

It is an American bent.
I am really enjoy reading, thus far.
