Kiusalas Perf Guage

Can someone tell me more about the Kiusalas Perf Guage?

Thanks,

George

Richard Kiusalas created two precision perforation gauges in 1965, one for US stamps and one for Canadian stamps. I don't know enough about US stamps to say which classic issues get good usage out of the gauge - for Canadian stamps, the Small Queen issue had a large number of printings and the Kiusalas gauge can help differentiate among them.

The gauges show spacings accurate to the thousandth of an inch. The perforations are shown in the traditional round-it-up-or-down-to-the-nearest-0.5, and a second number showing spacing in thousandths of an inch. So, 12-66 is a perf. 12 with an exact spacing of .066" between perforation pins.

Note that paper can shrink over time, so the perforation spacing originally found on the stamp might look slightly different when measured now.

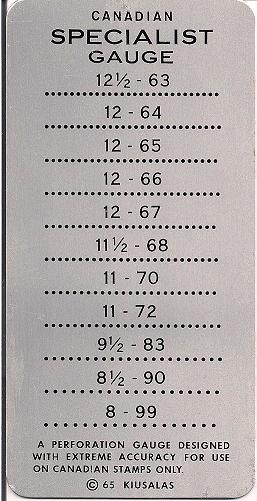

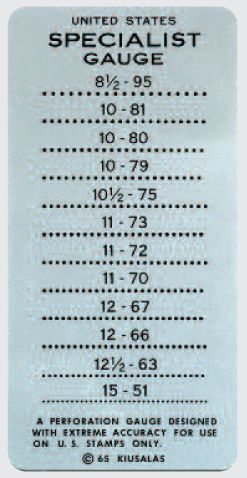

I don't have a US gauge - I found that picture on the internet. I do have a Canadian gauge. They're made out of aluminum.





Seeing as how they're now 45 years old, they can be tough to find. Sonic Imagery Labs has created a new perforation gauge that includes a replica of the Kiusalas US gauge.

http://www.slingshotvenus.com/stamp...tyPerf5.html

Ryan

Hi Ryan,

Thank you for your quick response. I didn't realized that there are two versions.

Cheers,

George

Did you know that U.S. 12.5-63 was made by a Rosback rotary perforator while U.S. 12-67 was made by a Rosback stroke perforator. Canada 12.5-63 and 12-67 were both made by rotary perforators that were not Rosback. The U.S. and Canada both shared the long used 12-66 and 11-72 and these were made by the same kind of rotary perforator that was made in the U.S. These two measurements are exactly the same between the two gauges with respect to the same perforating machines. Also, Kiusalas missed for his Canadian gauge what should have been 12.5-62 and 13.5-59 for early Canadian revenue stamps. U.S. and Canada 11-70 was a bar perforator perforation used by both in a bar and wheel perforator for rotary press sheet stamps.

I have a Kiusalas gauge, but I don't really use it all that often. I prefer the Unitrade 'Perfect' gauge, it is an Instanta-style transparent gauge. I find if something doesn't line up 100% with the Kiusalas then you are left guessing. Whereas the graduated lines on the Unitrade gauge allow you to pinpoint the exact measurement. As well most of the resources I work with (catalogues, books, websites etc.) list 'Instanta' measurements rather than Kiusalas.

I also like that the clear gauges work with stamps on-cover and that I can measure stamps in my alblum without removing them from their place.

There are three different transparent versions of the Kiusalas perforation gauge that have been made by others that are based on his aluminum perforation gauge. They are as follows:

The Perf-Vu which appears to be a transparent version of his U.S. gauge.

The U.S. Specialty Precision Multi-Gauge which has on it a transparent version of his U.S. gauge along with the addition of 11-72.5

The Perfector which is a transparent version of both his U.S. and Canadian gauges and any and every possible measurement from 50 to 100.

If there are any others that I missed, please let me know on here.
